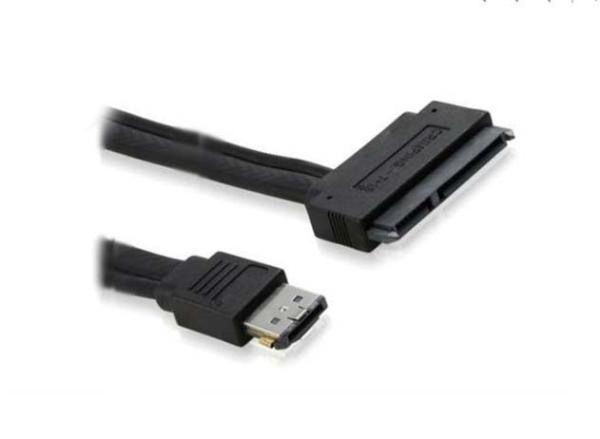

SATA 1.5GB/s & 3Gb/s Serial Combo Data & Power Cable 0.5m
esata to sata 7+15P cable
SATA to ESATA 7+15P
1. Connection: Power Over eSATA (eSATAp)/Micro SATA 22pin (7+15pin)
2. Voltage:12V/5V
3. Notebook or PC with a free Power Over eSATA port
Convert Internal SATA 2port to External connection at PCI bracket.
Let your internal SATA port connect external SATA device
Material:
1.Housing:PVC,LCP
2.Terminal:Phoshpor Bronze or gold plated
3.Singnal Wire:UL2725 26/28 AWG,Tinned Copper
Electrical:
1. Hi-Pot Test:DC300V
2. Insulation Resistance:10M Ohms(min)
3. Contactor Resistance:1 Ohms(Max)
4. 100% Open Short and Miss Wire Test
Features:
1.Designed to connect SATA port to SATA port
2.Sate data transfer EMI protection
3.Support speed up to 6Gbps/and 3Gbps/1.5Gbps
4.Flexible cable
5.SATA3.0 backwards compatible with earlier products and equipment
SATA cables:
- SATA 7P
- SATA 13P
- SATA 15P
- Micro SATA 16P(7+7+2)
- SATA 22P(7+15)
- MINI SAS 29P(7+7+15)
- SAS 32P(16+16)
- ESATA
Applications
Serial SATA technology offers higher bandwidth and a wider range of applications including the flowing :
- CDs, DVDs
- Tapes Devices
- High Capacity Removable Devices
- Zip Drives
- CD-RWs
- HD Device
